Key-Box 9400 SC Series

Model: 9400SCSERIES

Key-Box Key Systems Are The Lowest Priced Key Systems In North America!

Key-Box 9400 SC series intelligent key management system with smart key identification for monitoring and controlling each and every key. The Key-Box 9400 SC offers a choice between a capacity of 14, 28 or max. 42 key slots. A 14 key system can be easily upgraded up to 42 key slots at any time There is a wide range of options and available accessories available for the 9400 SC series key system.

The 9400 SC Key Management Systems Are In Stock For Fast Delivery Throughout North North America!

Key-Box 9400 SC Information Brochure	KeyWin6 Pro Standard Software Brochure	KeyWin6 Pro Opt. Cloud Software Brochure
Case Study and Clinets Using Key-Box Systems	Purchasing Guide for Key Mgmt. System	Key-Box 100% Solid Metal Smart Key Fobs

Key-Box High Quailty Key Management Systems

Key-Box 9400 SC series

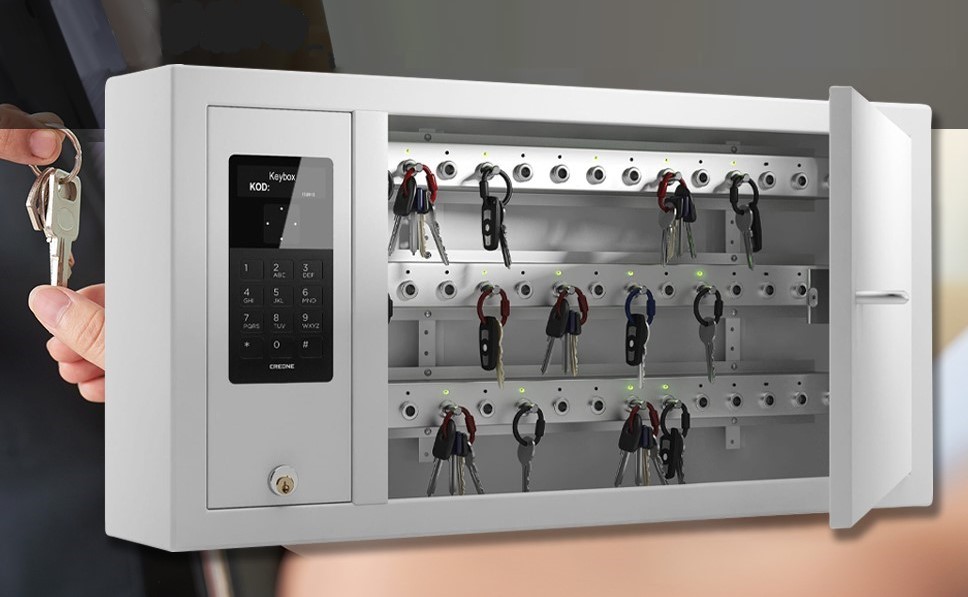

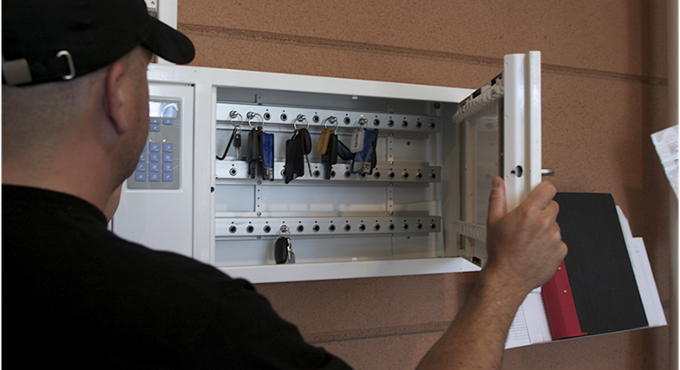

Intelligent key system with key identification for monitoring and controlling each and every key. Space for a maximum of 42 key slots (maximum of 3 key strips with 14 slots on each strip) Display with simple menu navigation. Equipped with battery backup. Administration performed using the PC program KeyWin 6 Pro software. The 9400 SC is a popular key system for use in small applications for businesses and organizations requiring to store a small amount of keys.

What's Included In Each Key-Box Key Management System

Each 9400 SC key system includes *Key cabinet system with digital display and PIN entry keypad, *Standard high impact clear polycarbonate and metal frame door, *100% solid metal intelligent key fobs, *Stainless steel tamper proof key rings, *Network KeyWin software license with no annaul fees, *Unlimited professional remote tech support for setting up your new Key-Box key management system. Key-Box is your best value as it includes everything required in a key system without added extra costs!

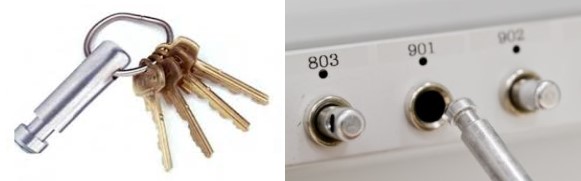

Key-Box exclusive Secure-Lock 100% solid metal intelligent key fobs is the solid choice when it comes to choosing a key system. The solid metal key fobs and tamper proof key rings are included with all of our Key-Box key management systems...Learn More

KeyWin 6 Pro Software License Is Included With All Key-Box Automated Key Systems At No Extra Charge!

How Does Key-Box Key Systems Work?

The way the key system with intelligent locking key fobs works is each user would be issued a preselected personal PIN number the user will then enter his/her PIN on the keypad located on the cabinet. The cabinet door will automatically open and only release the keys they are authorized to have. The rest of the keys in the cabinet will stay locked in place. The system will record when the keys were taken and when they are returned and by whom! If the keys are not returned within the curfew the system will automatically generate an email and send it to management or security.

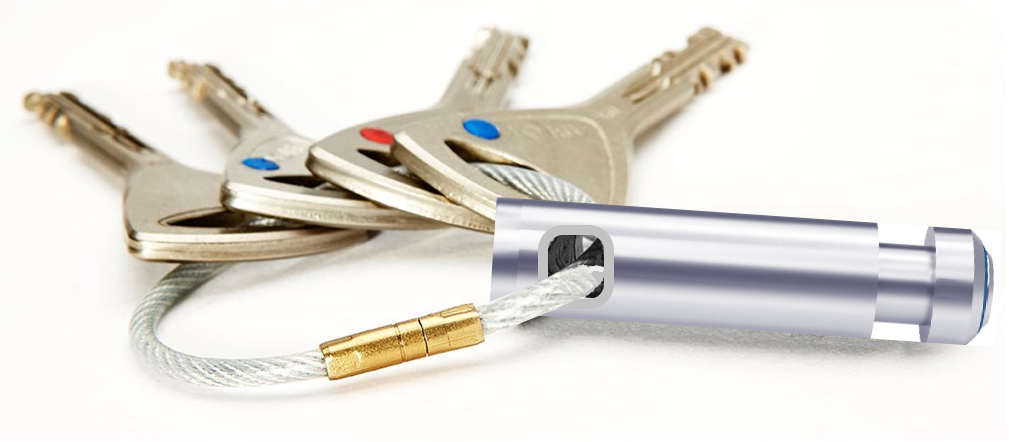

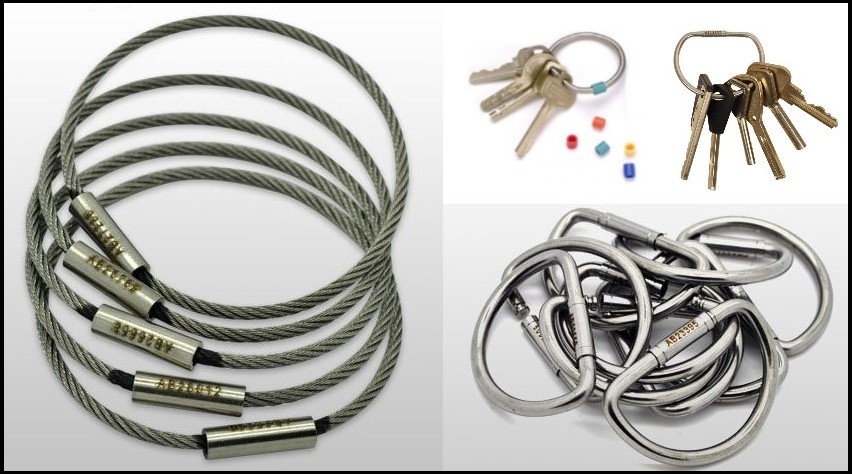

All key-Box systems come with our durable stainless steel flexible tamper proof key rings All key systems come standard with our 1.5" diameter round durable flexible stainless steel key rings We also offer a wide range of available key rings ...Learn More

Key-Box Key System Are Loaded With Advanced Features

Users
•Selected or random PIN code. Option to
change code at cabinet(s).
•Inactivation of users.
•Validity period for users.
•Unlimited number of users.

Keys

•Time restriction.
•Searchable hidden key ID.
•Graphical key overview.
•One key in one or more cabinets.
•Free or fixed key position

Event Log
•Log from PC and cabinet(s).
•Selection of what will be shown in log.
•Intelligent search function.
•Sort by date or events.
•Clear alarm indications.
•Reports via CSV file and PDF.

Administrators

•Unlimited number of administrators.
•Adjust administrator rights.
•Selection of cabinet(s) for administration.
•Only information about own cabinet(s).
•Activities registered in log

Groups

•Groups for users and keys.
•Time channels.
•Simple administration via groups

Key Cabinet

•Search function in display.

•Information about who has key.

•Service menu for configuration.
•Administration code with full authorization.
•Stand-alone or network.
•Automatic or fixed IP address.
•Door alarm.
•Key alarm.

PC Software Administration

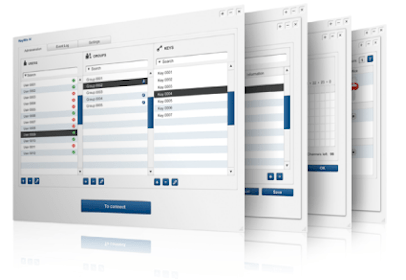

The 9400 SC Series is administered from the user friendly KeyWin 6 Pro software supporting a Microsoft Access or SQL data base.The 9400 SC Series can communicate with the KeyWin 6-Pro software using a range of different options including Ethernet, GPRS, RS485, RS232 and modem. Multiple systems can be networked together over a local or wide area network to provide accountability for a limitless number of keys administrated from multiple PC workstations running the KeyWin 6-Pro software.

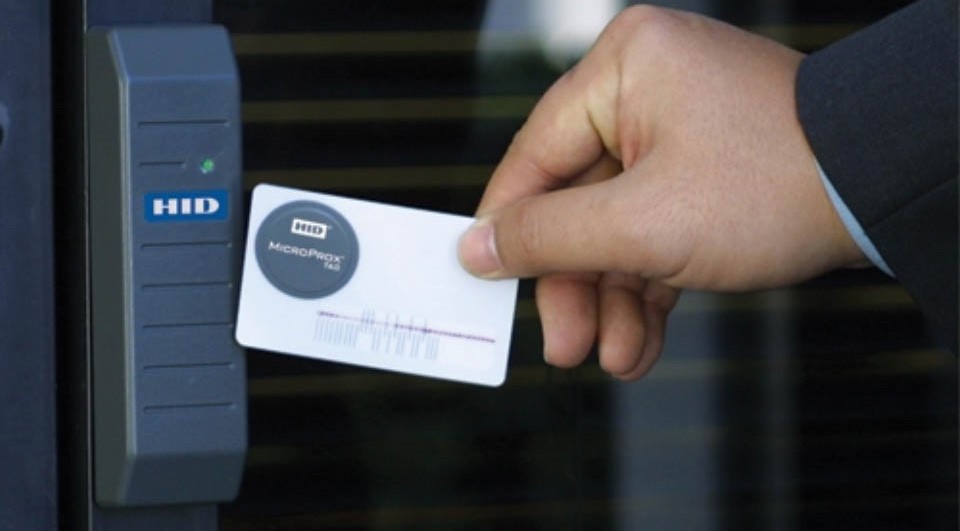

Optional User Access Identification
The 9400 SC Series can support any type of optional access control device required to identify a user to the key system. Supported devices include optional RFID proximity access control card readers from all leading access control manufacturers, magstripe, barcode and biometric technologies such as fingerprint, etc. (Note bio-metric readers not available for the 9400 SC series)

Modular Design Features

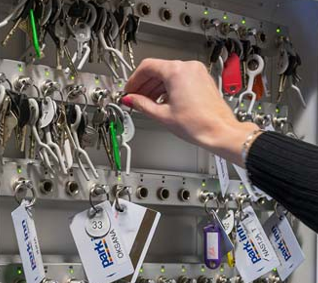

Designed to accommodate between 14 and 42 keys (or key sets), the innovative 9400 SC Series design allows for starting small and later expanding by adding multiples of 14 key positions (called expansion key strips) as required. Expansion Key Strips are defined as locking or non-locking. Locking receptor strips lock the key fobs in place restricting access to authorized personnel down to the individual key. Non-locking expansion strips provide a solution for organizations requiring less security but still an audit of key usage. LED lighting indicate which keys can be taken, which keys are restricted and assist the user when returning the key to the correct location. the cabinets can be supplied with a clear polycarbonate or metal door. The control panel consists of the user interface which includes the screen, keypad and access card or biometric reader.

Key System Specifications

Cabinet Dimensions: 746 x 370 x 140 mm

Weight: 25 kg

Power Supply: Input: AC120-240V

Power Output: VDC
Battery Backup: DC12V 3.2Ah (24hours)
Power Consumption: 65W max/0.3A
Cabinet Material: Steel
Color Options: Light Grey Powder Coated
Door Material: Standard Clear Polycarbonate or

Optional Solid Metal Door

Operating Temp: Ambient for Indoor Use Only

Mounting: Wall or Cabinet stand mounted

Key Positions: 14-42 key slot positions

Receptor Strip: Support: Locking and Non-Locking version

Users per systems: 10,000 plus users
Communications: Ethernet, GPRS, RS485, RS232, Modem
Reader Interface: Wieguard
